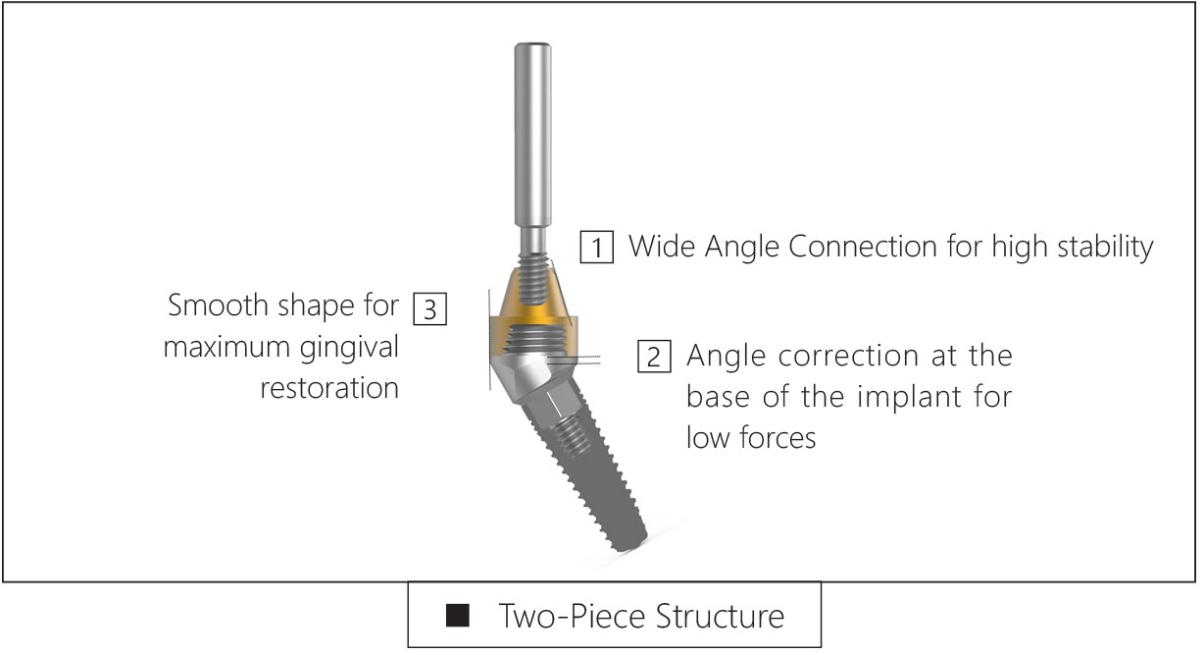

SURCAM’s unique Multi-Unit system provides a solution for screw-retained prostheses. Surcam designed the system to provide a solution for multiple tilted implants cases that are complicated to restore. The Multi-Unit system provides a superior prosthetic solutions and covers a full range of sizes for both the upper and lower jaws: This low profile system comes in different angels: a straight adapter, 9°, 18°, 30° and 45° angle adapters, in a variety of gingival heights. The system also contains all the significant complementary products needed.

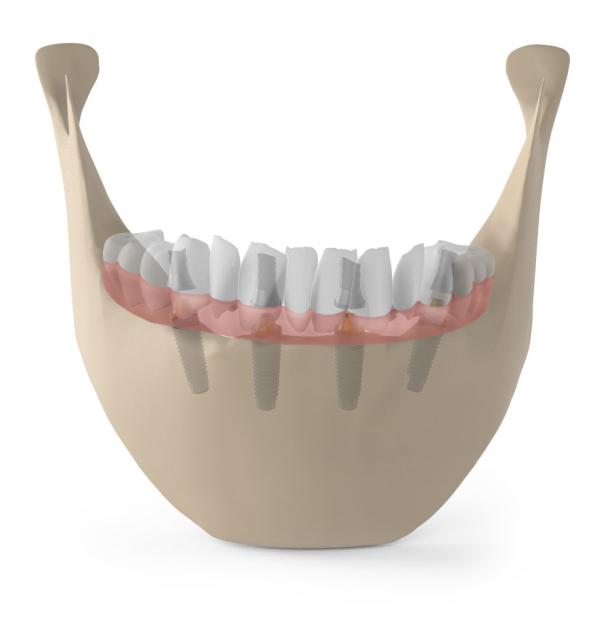

Screw retained restoration

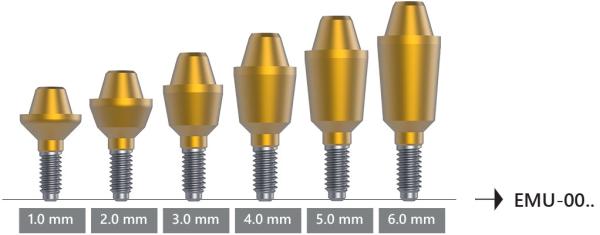

1. Straight Multi-Unit – an abutment connection to an implant can be mounted at six different heights:

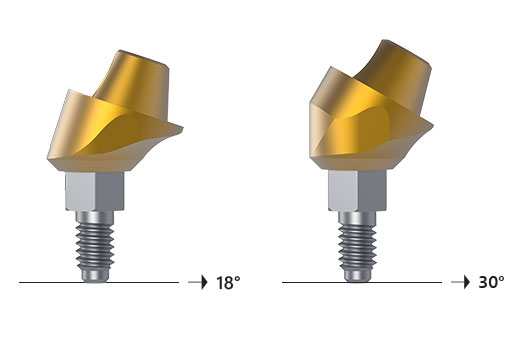

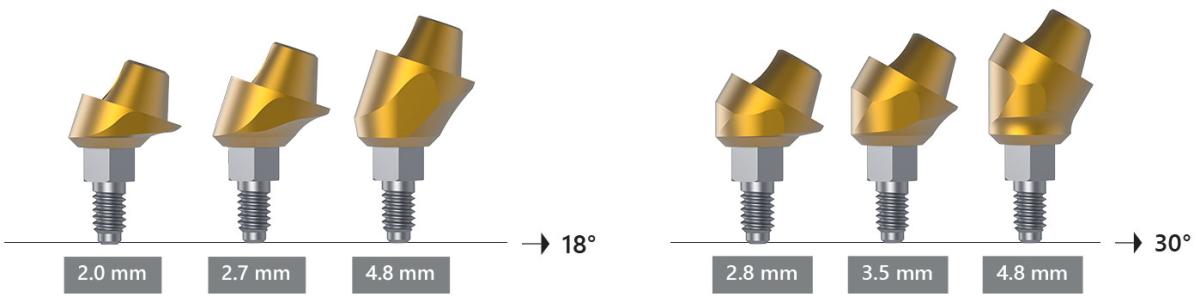

2. 18° and 30° Angled Multi-Unit abutments are available in three different heights: H00, H01, H02

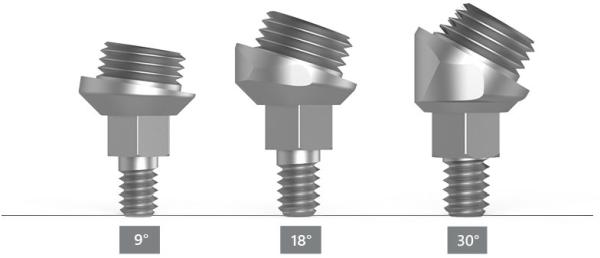

3. An Angular Adapter can be mounted at three different angles: Recommended in cases when soft tissue thickness is more than 4 mm.

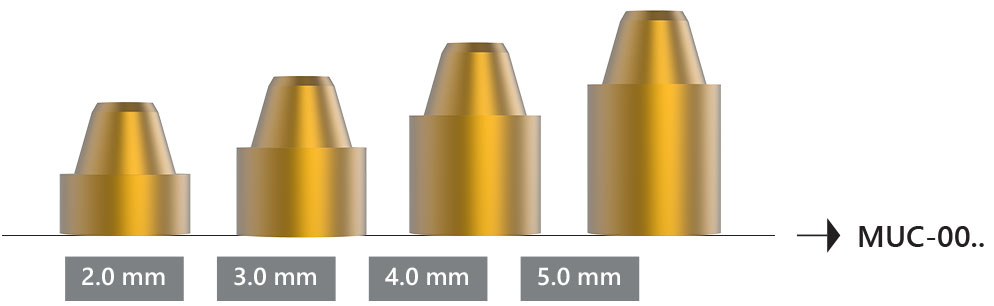

4. Multi-Unit Cover – Can be mounted at four different heights:

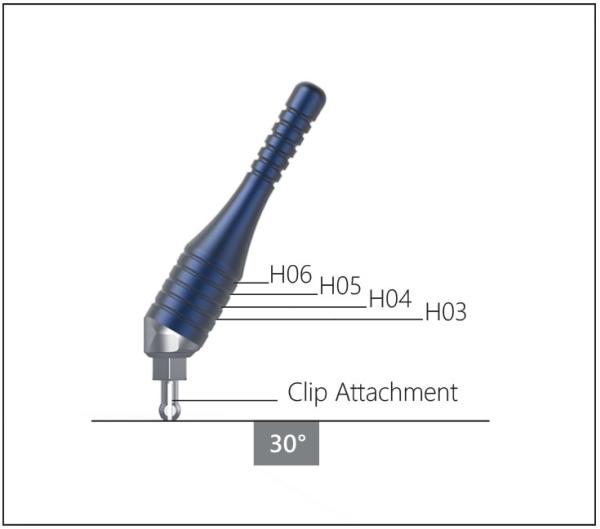

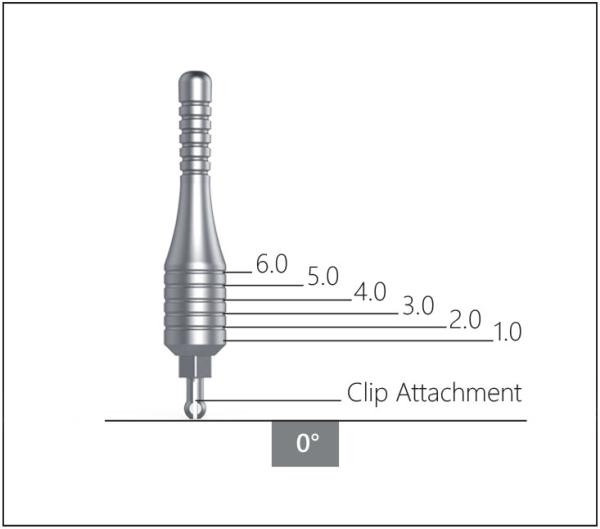

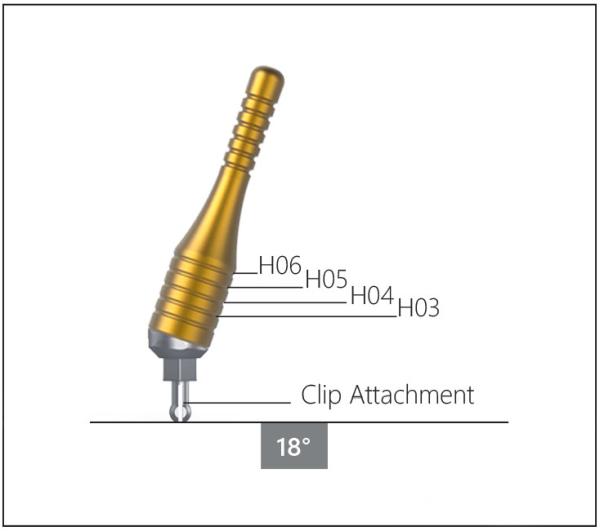

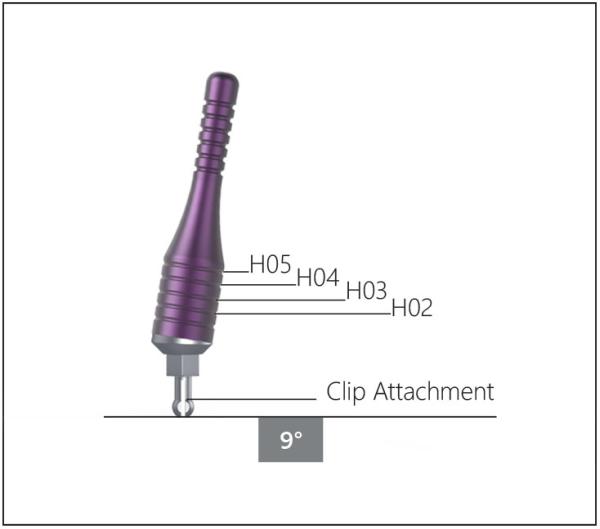

5. Angle and height clip gauge – use the Gauge Kit for angle and height selection

Using the angle gauges gives you an option to pre-plan the use of the abutment in order to achieve maximum parallelism.

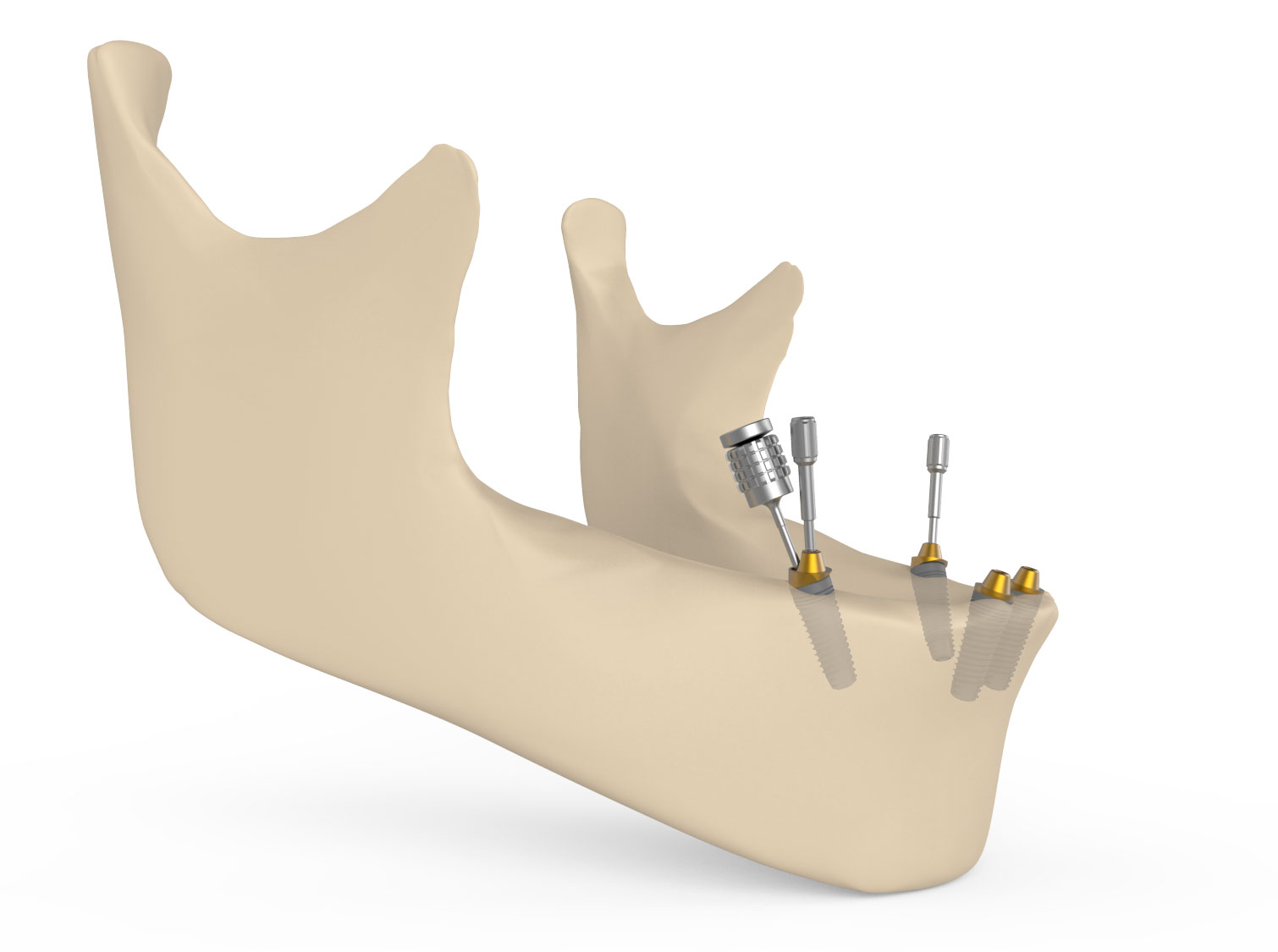

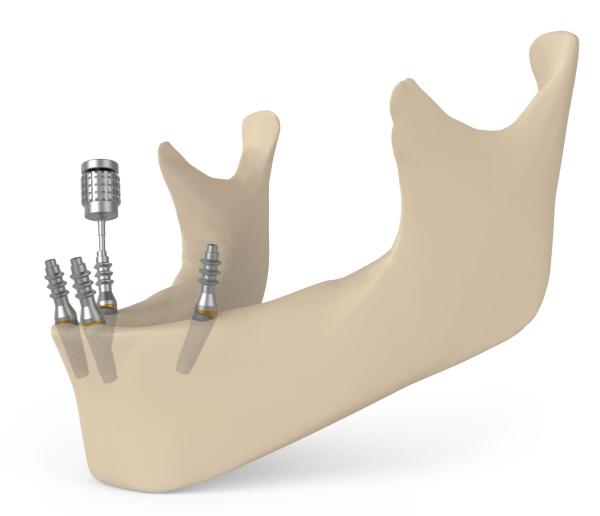

6. Multi-Unit connection – use the holder to place the base connection into the implant

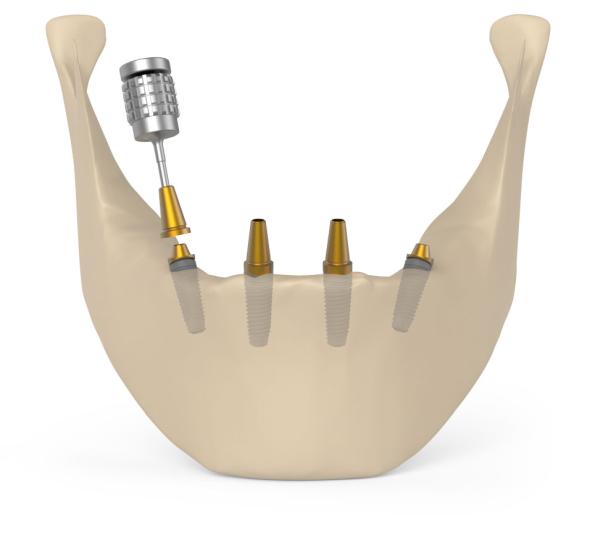

Multi-Unit abutments attached to the implant

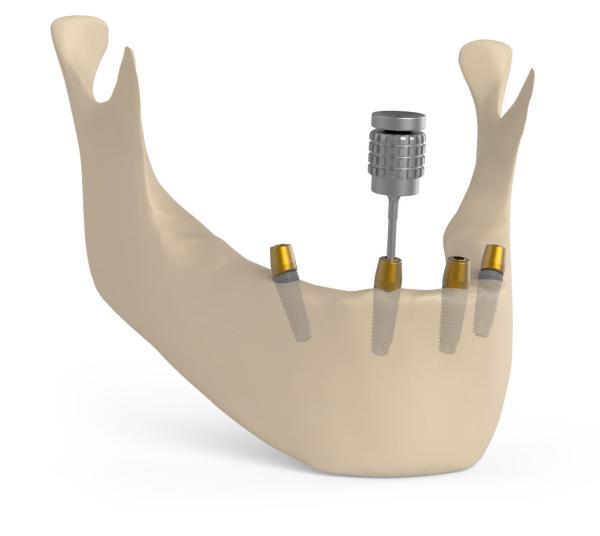

Multi-Unit base connection – use the holder to place the base connection into the implant

Match the Multi-Unit cover abutment height 2-5 mm as required

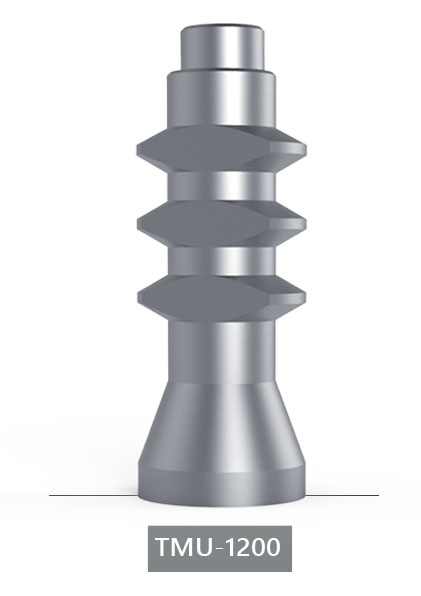

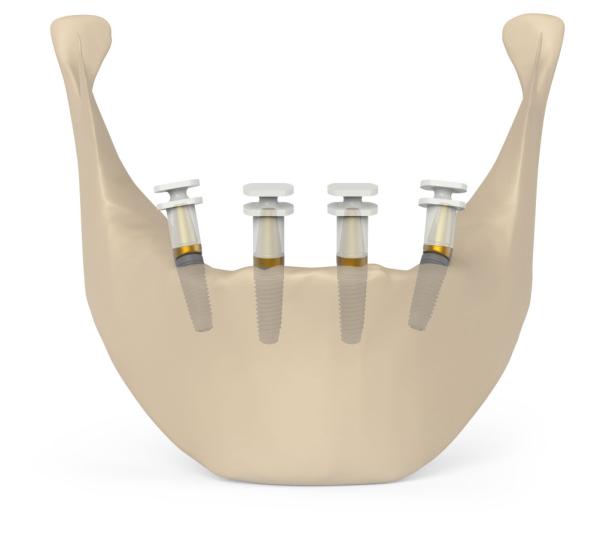

Closed tray impression coping – with plastic cap

Snap-on to secure positioning & Use Closed-tray impression coping

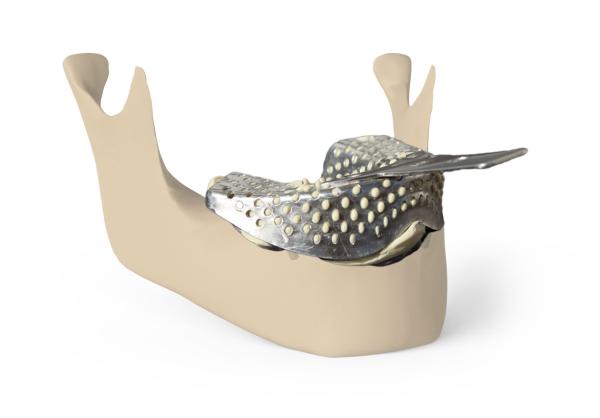

connect the transfer onto the abutment. Inject impression material and position the impression tray

Inject impression material and position the impression tray.
Send the impression tray to the laboratory

Healing procedure – connect the temporary restoration healing cap

The original denture can be used on top of the healing caps while the temporary denture is being produced

Connection of the temporary prosthetic restoration – verify tightening of 15 Ncm

NOTE

The screw geometry was carefully designed and optimized to allow safe tightening and long service. Special attention must be paid while tightening the screw. Make sure to use an original SURCAM hex key with edges that do not show wear. It is recommended to purchase additional screws

Simple immediate restoration implantation

The sleeves height needs to be trimmed to the desired height
